Angle processing plays a crucial role in the fabrication of structural steel components, allowing Behlen Custom Fabrication to use computer numerical control (CNC) systems to produce accurately machined and precisely marked parts for construction projects such as buildings, bridges, towers, and other structures.

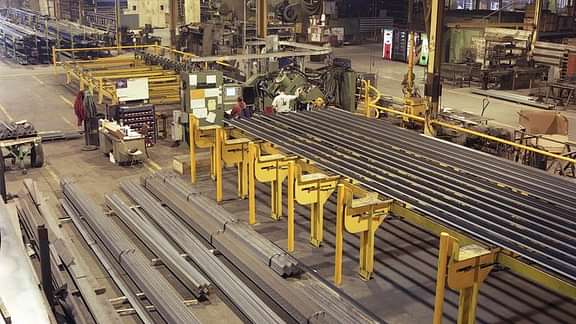

Our angle processing capabilities at Behlen Custom Fabrication include manufacturing angle, flat bar, and c-channel components. With a shearing capability of 196 tons, our CNC-controlled machines work with material ranging from 1.5" x 1.5" x 0.1875" to 8" x 8" x 0.75".
Here are some common operations involved in angle processing:
Cutting
Angle processing machines can cut structural steel angles to the desired length. This may involve sawing, shearing, or plasma cutting depending on the machine's capabilities and the thickness of the material.
Punching
Punching machines equipped with multiple punching heads or turret mechanisms can create holes, slots, or other openings in structural steel angles. CNC-controlled punching ensures accurate hole placement and size.
Drilling
For applications requiring larger or specialized holes, angle processing machines may include drilling units capable of drilling holes of various diameters and depths in structural steel angles.
Marking
Angle processing machines often feature marking systems, such as inkjet printers or scribing tools, to apply part numbers, labels, or other identification marks directly onto the surface of the structural steel components. This helps in tracking and organizing the fabricated parts during assembly.
Bending
Some angle processing machines are equipped with bending units or press brakes that can bend structural steel angles to specific angles or shapes. This is useful for fabricating components with complex geometries or for fitting angles to specific requirements.
